Motorola MVME712-11 Transition Board

The MVME712-11 is used as the interface between Motorola's MVME1xx RISC and CISC Single Board Computers, such as the MVME147, MVME162, MVME167, MVME187 and MVME197 families of VMEmodules, and their peripheral devices. A P2 adapter module and cables are supplied for interconnection between the MVME712-11 and the MVME1xx-family VMEmodule.

MVME712-11 Features

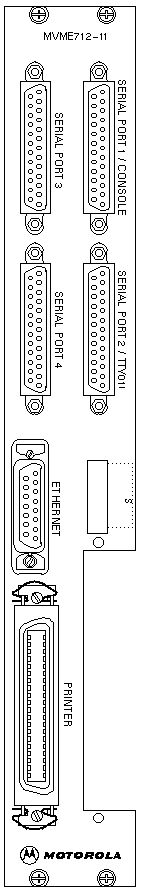

Four DB-25 connectors for the serial ports.
The serial ports may be configured for use as DTE or DCE through jumper arrangements on the MVME712-11.
One 36-pin connector for the printer port
One DB-15 connector for the Ethernet port

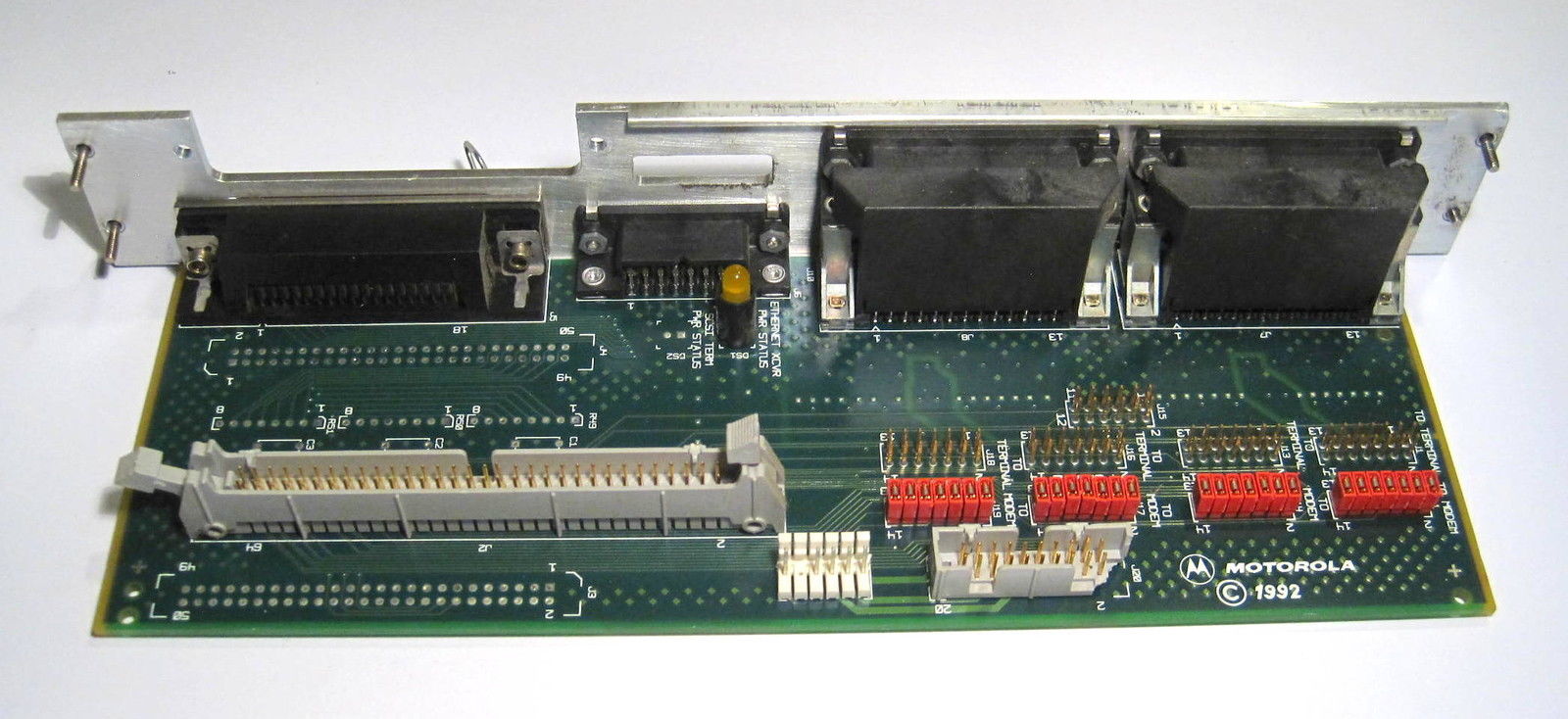

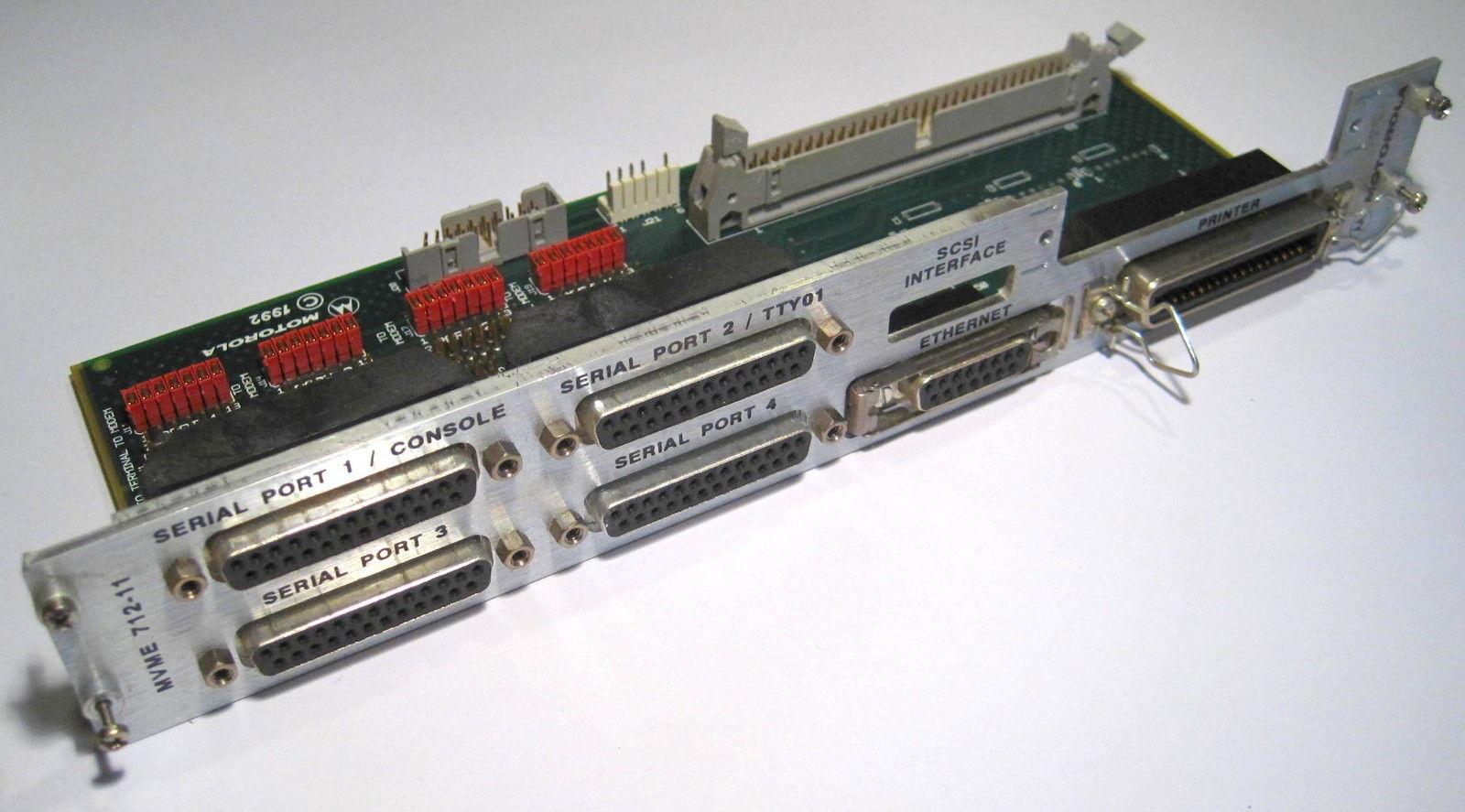

MVME712-11 Pictures
