Motorola MVME712-102 Transition Board

The MVME712-102 is used as the interface between Motorola's MVME1xx RISC and CISC Single Board Computers, such as the MVME147, MVME162, MVME167, MVME187 and MVME197 families of VMEmodules, and their peripheral devices, on XR chassis. A P2 adapter module and cables are not required for interconnection between the MVME712-102 and the MVME1xx-family VMEmodule.

MVME712-102 Features

One DB-9 connectors for the serial port.
The serial port may be configured for use as DTE or DCE through jumper arrangements on the MVME712-102.
One AUI port.
One RJ45 port.
One 68pin SCSI port.

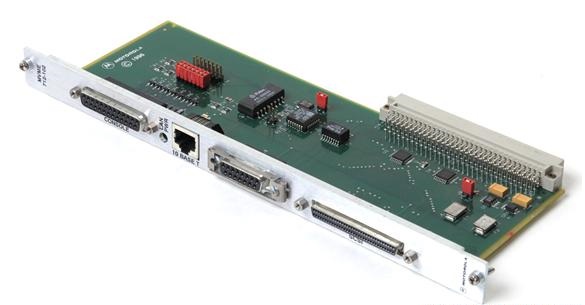

MVME712-102 Pictures
