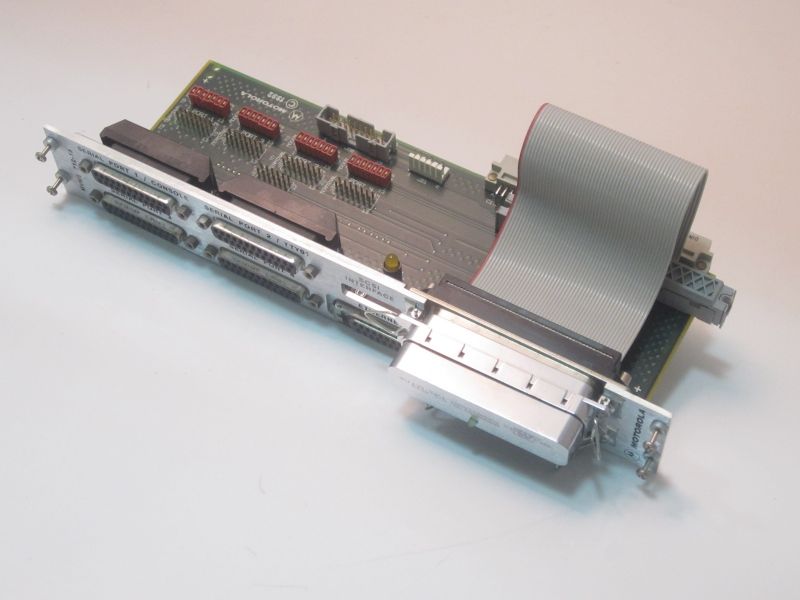

MVME712-15 is the same as MVME712M except it doesn't provide onboard external SCSI termination. The MVME712-15 is used as the interface between Motorola's MVME1xx RISC and CISC Single Board Computers, such as the MVME147S, MVME162, MVME167, and MVME187 families of VMEmodules, and their peripheral devices. A P2 adapter module and cables are supplied for interconnection between the MVME712-15 and the MVME1xx-family VMEmodule. The MVME712-15 has four DB-25 connectors for the serial ports, one 36-pin connector for the printer port, one 50-pin connector for the SCSI port, and one DB-15 connector for the Ethernet port. The serial ports may be configured for use as DTE or DCE through jumper arrangements on the MVME712-15.
-----------------------------------------------------------------------

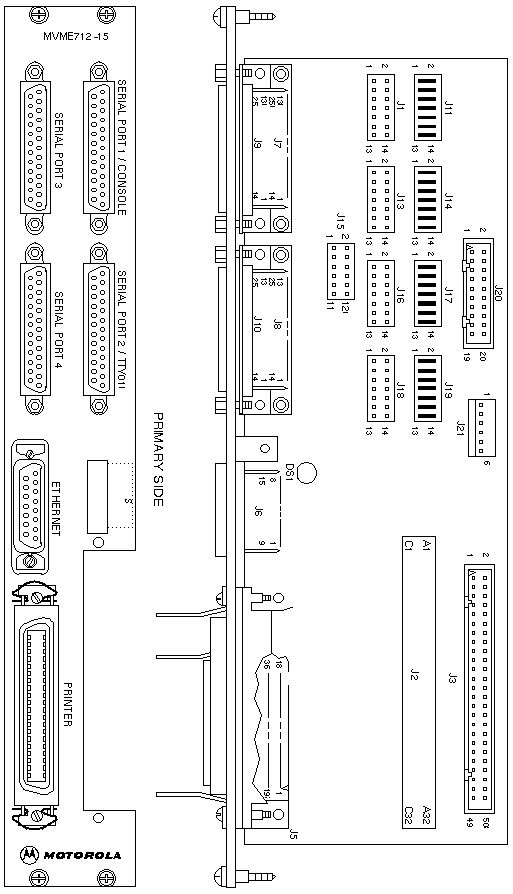

Header Description Setting
-----------------------------------------------------------------------
J1 Serial Port 1 DCE Configuration No Jumpers
J11 Serial Port 1 DTE Configuration (default) 1-2, 3-4, 5-6, 7-8,
9-10, 11-12, 13-14
J13 Serial Port 3 DCE Configuration No Jumpers
J14 Serial Port 3 DTE Configuration (default) 1-2, 3-4, 5-6, 7-8,
9-10, 11-12, 13-14
J15 Serial Port 4 Clock Configuration Select No Jumpers
J16 Serial Port 2 DCE Configuration No Jumpers
J17 Serial Port 2 DTE Configuration (default) 1-2, 3-4, 5-6, 7-8,
9-10, 11-12, 13-14
J18 Serial Port 4 DCE Configuration No Jumpers
J19 Serial Port 4 DTE Configuration (default) 1-2, 3-4, 5-6, 7-8,
9-10, 11-12, 13-14
-----------------------------------------------------------------------
