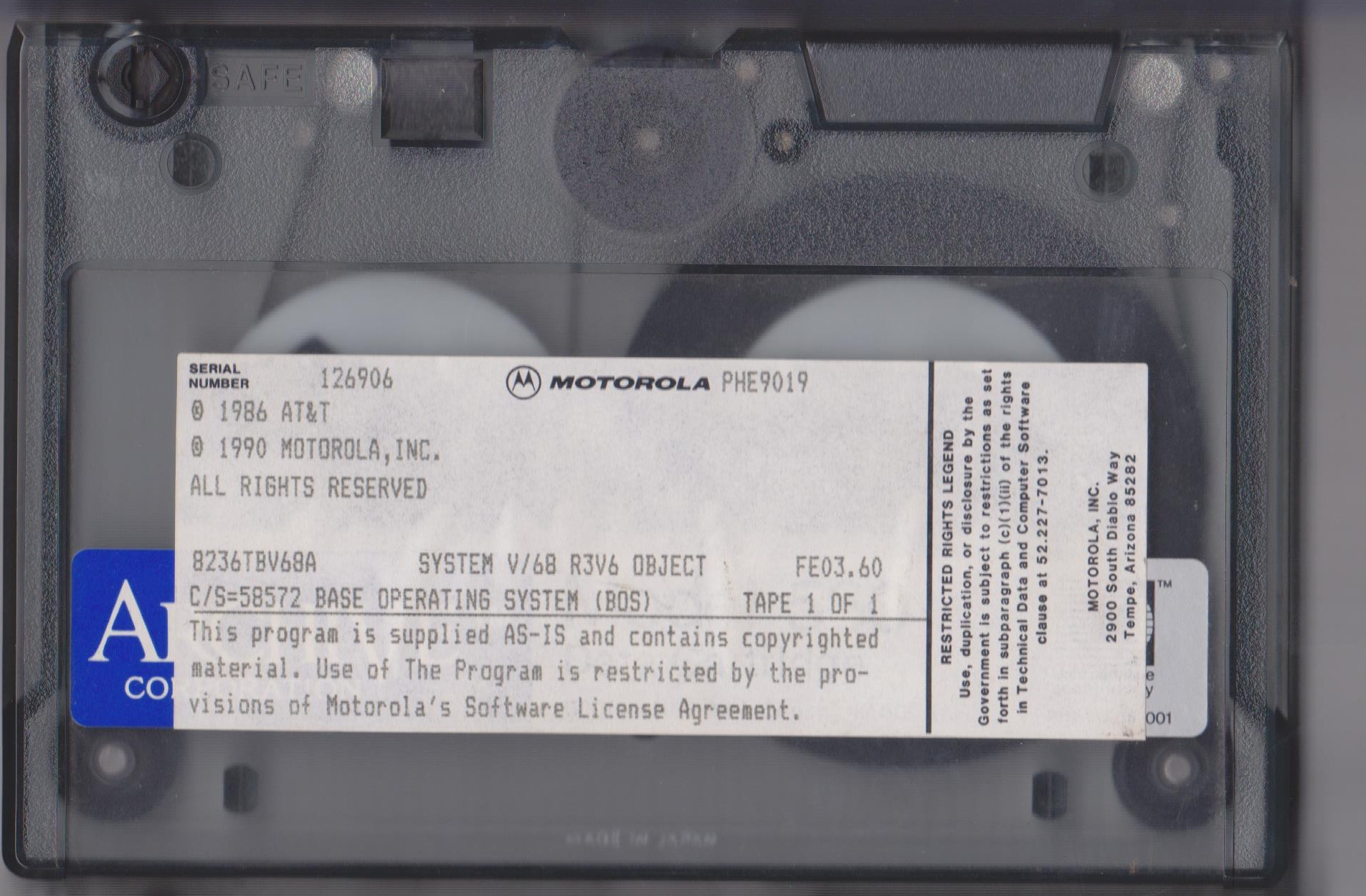

Motorola System V/68 Release 3 Version 6


Requirements

  • A minimum of 4MB of DRAM
  • A processor with SST/boot ROM firmware version:
    CPU Board SST/Boot ROM firmware version
    MVME131x 3.1 or higher
    MVME132x 3.1 or higher
    MVME134 1.0 or higher
    MVME141 1.7 or higher
    MVME147 2.0 or higher

    Peripherals Supported


    Board Description Max count
    MVME131 MVME131 Family - MC68020 CPU 1
    MVME132 MVME132 Family - MC68020 CPU 1
    MVME134 MC68020, MC68851 PMMU, 4MB DRAM 1
    MVME141 MVME141 Family - MC68030 CPU 1
    MVME147 MVME147 Family - MC68030, MC68882, 4 or 8MB DRAM, SCSI, Ethernet 1
    MVME204 1 or 2MB DRAM 4
    MVME205 4MB ECC DRAM 4
    MVME224 4 or 8MB Parity Memory 4
    MVME230 4, 8 or 16MB ECC Memory 4
    MVME236 16MB Parity Memory 2
    MVME320A Winchester/Floppy Controller 2
    MVME320B Winchester/Floppy Controller 2
    MVME323 ESDI Controller 2
    MVME327 SCSI Bus Adapter 2
    MVME332XT 8 Serial/1 Parallel Port Async Communications Controller 8
    MVME333 Synchornous Communications Controller 2
    MVME335 4 Serial/1 Parallel Port Async Communications Controller 1
    MVME336 DeltaLink Controller 1
    MVME350 QIC-02 Streaming Cartridge Tape Controller 2
    MVME355 9-Track Tape Controller 1


    Device Maximum Number Form Factor
    70MB Micropolis Winchester Hard Disk* 4 5¼inch
    70MB CDC WREN II Winchester Hard Disk* 4 5¼inch
    182MB CDC WREN III ESDI Hard Disk 4 5¼inch
    390 CDC WREN V ESDI Hard disk 4 5¼inch
    40MB Seagate ST-157 SCSI Hard Disk** 4 3½inch
    85MB Seagate ST-296N SCSI Hard Disk** 4 5¼inch
    104MB CDC Swift126 SCSI Hard Disk** 4 3½inch
    172MB CDC Swift201 SCSI Hard Disk** 4 3½inch
    150MB CDC WREN III SCSI Hard Disk** 4 5¼inch
    300MB CDC WREN IV SCSI Hard Disk** 4 5¼inch
    600MB CDC WREN V SCSI Hard Disk** 4 5¼inch
    60MB Archive 20602S SCSI Streaming Cartridge Tape Drive** 2 5¼inch
    150MB Archive 2150S SCSI Streaming Cartridge Tape Drive** 2 5¼inch
    155MB TEAC SCSI Cassette Streaming Tape Drive** 2 5¼inch
    2GB Exabyte EXB-8200 SCSI Streaming Cartridge Tape Drive** 2 5¼inch
    1.2MB/655KB OMTI SCSI Floppy Disk Drive 1 5¼inch
    360MB - 2.9MB TEAC SCSI Floppy Disk Drive 1 5¼inch
    60MB Archive 2060L QIC-02 Streaming Cartridge Tape Drive 1 5¼inch
    150MB Archive 2150L QIC-02 Streaming Cartridge Tape Drive 1 5¼inch
    Pertec 1600/3200 BPI 9-track Tape Drive 1
    Kennedy 1600/6250 BPI SCSI 9-track Tape Drive (Model 9662) 1
    * There is maximum of two drives per controller.
    ** The maximum number of these SCSI drives depends on kernel configuration.
