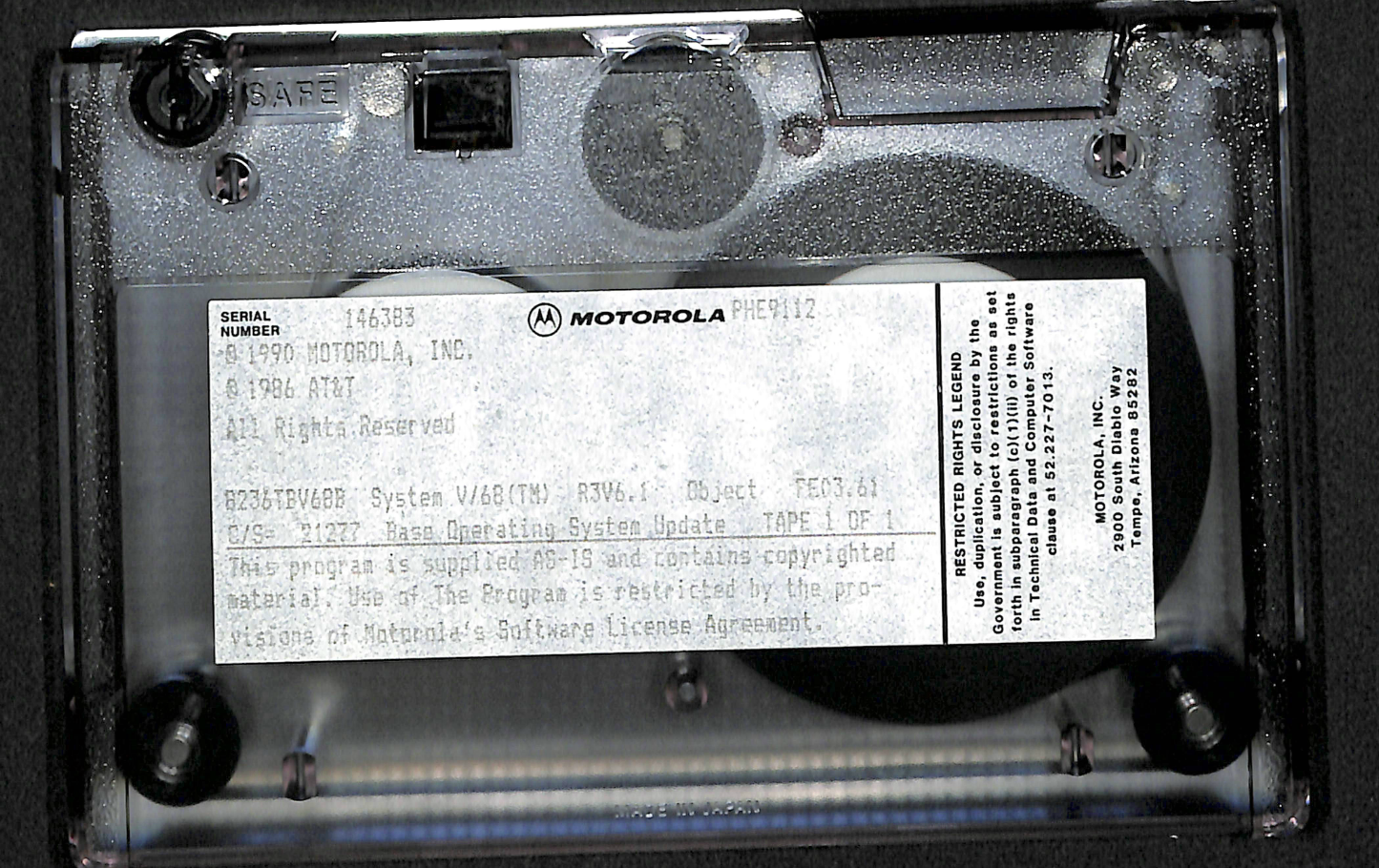

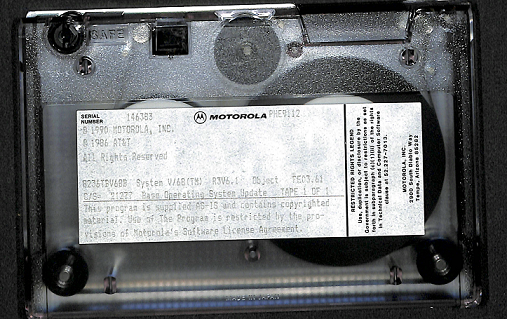

Motorola System V/68 Release 3 Version 6.1



New Features

Description of the new feature
True 4Kb MMU pages
High Performance FIle Systems (HPFS)
Generic (controller independent) tape handling.

Peripherals Supported


Board Description Max count
MVME131 MVME131 Family - MC68020 CPU 1
MVME132 MVME132 Family - MC68020 CPU 1
MVME134 MC68020, MC68851 PMMU, 4MB DRAM 1
MVME141 MVME141 Family - MC68030 CPU 1
MVME147 MVME147 Family - MC68030, MC68882, 4 or 8MB DRAM, SCSI, Ethernet 1
MVME204 1 or 2MB DRAM 4
MVME205 4MB ECC DRAM 4
MVME224 4 or 8MB Parity Memory 5
MVME236 16Mb Parity Memory 4
MVME320A Winchester/Floppy Controller 2
MVME320B Winchester/Floppy Controller 2
MVME323 ESDI Controller 2
MVME327 SCSI Bus Adapter 2
MVME332XT 8 Serial/1 Parallel Port Async Communications Controller 8
MVME333 Synchornous Communications Controller 2
MVME335 4 Serial/1 Parallel Port Async Communications Controller 1
MVME336 DeltaLink Controller 1
MVME350 QIC-02 Streaming Cartridge Tape Controller 2
MVME355 9-Track Tape Controller 1


Supported Drives

Device Maximum Number
70MB Micropolis Winchester Hard Disk* 4
70MB CDC WREN II Winchester Hard Disk* 4
337MB Fujitsu SMD Hard Disk* 4
182MB CDC ESDI Hard Disk 4
390MB CDC Wren V ESDI Hard Disk 4
150MB CDC Wren III SCSI Hard Disk** 4
300MB CDC Wren IV SCSI Hard DIsk** 4
85MB Seagate ST-296N SCSI Hard Disk** 4
60MB Archive 2060S SCSI Streaming Cartridge Tape Drive** 2
150MB Archive 2150S SCSI Streaming Cartridge Tape Drive** 2
1.2MB/655KB Teac Floppy Disk Drive 1
60MB Archive 2060L QIC-02 Streaming Cartridge Tape Drive 1
150MB Archive 2150L QIC-02 Streaming Cartridge Tape Drive 1
Pertec 1600/3200 BPI 9-Track Tape Drive 1
Kennedy 1600/6250 BPI 9-Track Tape Drive 1
600Mb CDC Wren V SCSI Hard DIsk (94181-702 4
2Gb Exabyte EXB-8200 SCSI Streaming Cartridge Tape Drive 2
9-Track Kennedy 6250 BPI SCSI Tape Drive (Model 9662) 2
* There is maximum of two drives per controller.
** The maximum number of these SCSI drives depends on kernel configuration.
