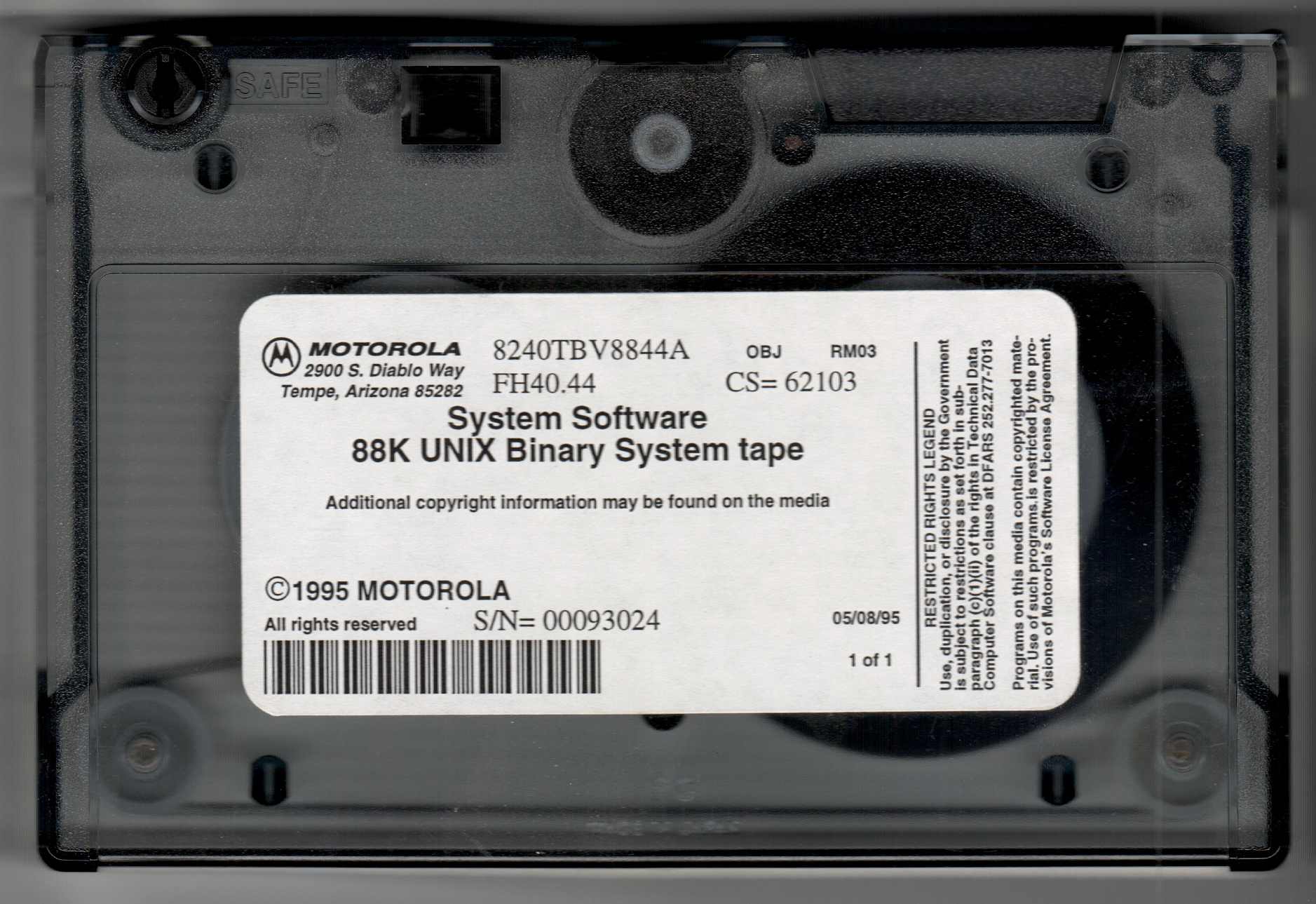

Motorola System V/88 Release 4.0 Version 4.4

Hardware Components

MVME 197-based Systems

System	Description
MVME911	40MHZ MC88110 CPU, 32MB Memory, 16Kb Cache, Modular Enclosure
MVME912	40MHZ MC88110 CPU, 64MB Memory, 16Kb Cache, Modular Enclosure
MVME921	50MHZ MC88110 CPU, 32MB Memory, 16Kb Cache, Modular Enclosure
MVME922	50MHZ MC88110 CPU, 64MB Memory, 16Kb Cache, Modular Enclosure
MVME933	40MHZ MC88110 CPU, 128MB Memory, 272Kb Cache, Modular Enclosure
MVME963	50MHZ 2MC88110 CPU, 32MB Memory, 544Kb Cache, Modular Enclosure

MVME1 197 Boards

Board	Description
MVME197LE	50MHZ MC88110, 16MB ECC Mmeory, 16Kb Cache
MVME197-001a	50MHZ MC88110, 32B ECC Mmeory, 16Kb Cache
MVME197-002a	50MHZ MC88110, 64MB ECC Mmeory, 16Kb Cache
MVME197-003a	40MHZ MC88110, 32B ECC Mmeory, 16Kb Cache
MVME197-004a	40MHZ MC88110, 64MB ECC Mmeory, 16Kb Cache
MVME197-101a	50MHZ MC88110, 128B ECC Mmeory, 256Kb Cache
MVME197-201a	50MHZ 2MC88110, 128MB ECC Mmeory, 512Kb Cache

MVME 197 Memory

Module	Description	Max
MVME297-001a	32MB ECC DRAM Memory Expansion Module	2
MVME297-002a	64MB ECC DRAM Memory Expansion Module	2
MVME297-002a	128MB ECC DRAM Memory Expansion Module	2
MVME297-003a	256MB ECC DRAM Memory Expansion Module	2

MVME 188-based Systems

System	Description
8440 family	6-slot deskside enclosure, 25Mhz MC88100 CPU(s)
8540 family	12-slot rack-mountable system, 25Mhz MC88100 CPU(s)
8640 family	12-slot office pedestal system, 25Mhz MC88100 CPU(s)
8840 family	20-slot departmental computing system, 25Mhz MC88100 CPU(s)
8940	20-slot 61'' high rack enclosure, 25Mhz MC88100 CPU(s)

MVME 188 Boards

Board	Description
MVME188	188 Main Logic Board 20MHz/25Mhz
MVME188A	188 Main Logic Board 20MHz/25Mhz

MVME 188 HYPERmodules

Module	Description
1P64	20MHz/25MHz 1MC88100, 64Kb Cache
1P128	20MHz/25MHz 1MC88100, 128Kb Cache
1P512	20MHz/25MHz 1MC88100, 512Kb Cache
2P64	20MHz/25MHz 2MC88100, 64Kb Cache
2P128	20MHz/25MHz 2MC88100, 128Kb Cache
2P256	25MHz 1MC88100, 256Kb Cache
2P512	25MHz 2MC88100, 512Kb Cache
4P128	20MHz/25MHz 4MC88100, 128Kb Cache
4P256	25MHz 4MC88100, 256Kb Cache
4P512	25MHz 4MC88100, 512Kb Cache

MVME 188 Memory

Module	Description
MVME288-016	16MB Memory Module (max 4)
MVME288-064	64MB Memory Module (max 4)
MVME288EC-032	32MB Error-Checking/Correcting Memory Module
MVME288FE032	32MB Error-Checking/Correcting Memory Module
MVME288KE032	32MB Error-Checking/Correcting Memory Module
MVME288FC-128	128MB Error-Checking/Correcting Memory Module
MVME288KE128	128MB Error-Checking/Correcting Memory Module
MVME288KE032	128MB Error-Checking/Correcting Memory Module

MVME 187-based Systems

System	Description
8120 family	0-slot desktop enclosure, 25MHz MC88100 CPU
8220 family	3-slot desktop system, 25-33MHz MC88100 CPU(s)
8420	6-slot deskside enclosure, 25-33MHz MC88100 CPU
8520	12-slot rack-mountable system, 25-33MHz MC88100 CPU
8620	12-slot office pedestal system, 25-33MHz MC88100 CPU
M810	33 MHz MC88100 CPU, 32Kb Cache, no Memory, Series 900 Modular Enclosure

MVME 187 Boards

System	Description
MVME187	25MHz 1MC88100 CPU,2MC88200 CMMU, 4MB, 8MB, 16MB, 32MB Parity Memory
MVME187A to 187C	25MHz 1MC88100 CPU,2MC88200 CMMU, 4MB, 8MB, 16MB, 32MB Parity Memory
MVME187-01 to 187-04	25MHz 1MC88100 CPU,2MC88200 CMMU, 4MB, 8MB, 16MB, 32MB Parity Memory
MVME187-01A to 187-04A	25MHz 1MC88100 CPU,2MC88200 CMMU, 4MB, 8MB, 16MB, 32MB Parity Memory
MVME187-23 to 187-24	25MHz 1MC88100 CPU,2XC88200 CMMU, 16MB or 32MB Parity Memory
MVME187-31 to 187-34	33MHz 1MC88100 CPU,2XC88200 CMMU, 4MB, 8MB, 16MB, 32MB, 64MB, 128MB ECC Memory
MVME187-31A to 187-34A	33MHz 1MC88100 CPU,2XC88200 CMMU, 4MB, 8MB, 16MB, 32MB, 64MB, 128MB ECC Memory
