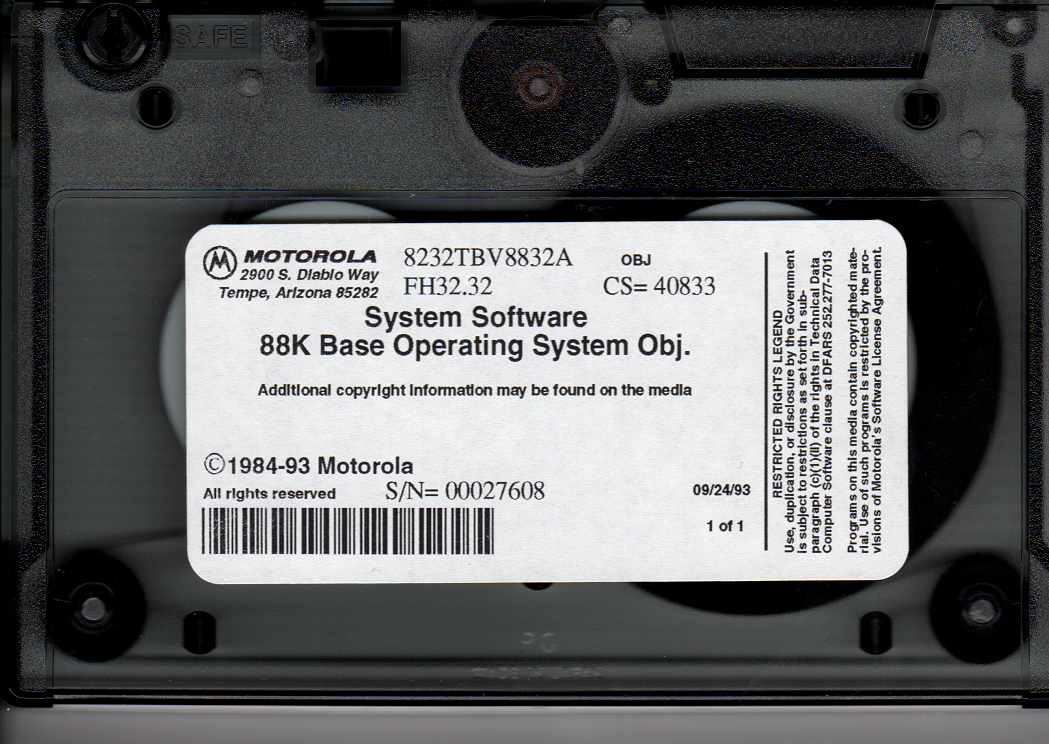

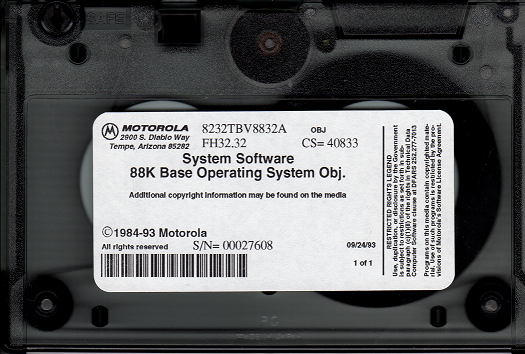

Motorola System V/88 Release 3.2 Version 3.2

New Features

Description of the new feature
Full support of the: NSE, DeltaWINDOWS X11 and OSF/Motif GUI
Fully compliant with Software Initiative (SI) Base Certification of the Binary Compatibility Standard (BCS) except for 9-track and Exabyte tape devices.
NIST-PCTS (POSIX Conforming Test Suite) compliance.
Support for upgrade from R32V(FH32.20) and R32V2 fix tapes, R32V3 (FH32.30), and R32V3.1 (FH32.31) releases of SYSTEM V/88 BOS.
General On-Line Diganostics(GOLD), Various bug fixes, Updated Online Manual Pages (OLMP).
Online problem descriptions/Technical Action Requests (TARs on tape).
Support for up to 512 simultaneously open file descriptors per process.
Support for Seagate 3-1/2 SCSI Disk Drives 11200 (1GB) and 12400 (2GB)
New Console Message Logger (CML) replaces the OSM logger
Configurable support for uppercase or lowercase filenames on CD-ROM ISO9600 file systems
Improved Kernel Panic and Memory Dump Facility
Kernel error messages printed with time stamp
More memory parity error recovery
Higher performance kernel data transfers
Larger slicing defaults for new installations on large drives

System Requirements

A minimum of 8MB of DRAM

Release C or later of the MC88200 cache and memory management unit.

MVME350 firmware revision 2.6 or later.

A terminal attached to the console port of the M8120, MVME181, MVME187, or MVME188 processor board. This terminal is required when booting the system from disk.

Release E.2 or later of the MC88100 processor with the following ROM firmware version:

CPU Board	SST/Boot ROM Firmware version
MVME181	4.1 or higher*
MVME187	1.3 or higher* **
MVME188	5.1 or higher* ***
M8120	1.1 or higher

* Installation restriction in Bug ROM limits disk booting to SCSI address 0 to 3; tape boots at SCSI address 4 or 5.
** MVME187 with ECC memory requires Bug ROM 1.4 or higher.
*** MVME188 with ECC memory requires Bug ROM 5.2 or higher.

Board Revision Levels

Board	Description	Max count	Min Revision
MVME181	1 MC881000 CPU, 2 MC88200 CMMU, 8MB DRAM	1	01-W2336C01C
MVME187* **	1 MC88100 CPU, 2 MC88200 CMMU, 8MB to 256MB DRAM	1	01-W3689B04C
MVME187* **	1 MC88100 CPU, 2 MC88200 CMMU, 32 or 256B ECC RAM	1	01-3548B01C
M8120* ***	MC88100 CPU, 2 MC88200 CMMU, single board computer	01A through 04A	01-W3817B01A
MVME188**	MVME188 Family: 188 Main Logic Board 20MHz 188 Main Logic Board 25Mhz 188A Main Logic Board 20MHz 188A Main Logic Board 25MHz 188 System Controller Board 188A System Controller Board HYPERmodules: 20MHz HYPERmodule 1 MC88100 CPU 4 MC88200 CMUU (1P64) 25MHz HYPERmodule 1 MC88100 CPU 4 MC88200 CMUU (1P64) 20MHz HYPERmodule 2 MC88100 CPU 4 MC88200 CMUU (2P64) 25MHz HYPERmodule 2 MC88100 CPU 4 MC88200 CMUU (2P64) 20MHz HYPERmodule 1 MC88100 CPU 8 MC88200 CMUU (1P128) 25MHz HYPERmodule 1 MC88100 CPU 8 MC88200 CMUU (1P128) 20MHz HYPERmodule 2 MC88100 CPU 8 MC88200 CMUU (2P128) 25MHz HYPERmodule 2 MC88100 CPU 8 MC88200 CMUU (2P128) 20MHz HYPERmodule 4 MC88100 CPU 8 MC88200 CMUU (4P128) 25MHz HYPERmodule 4 MC88100 CPU 8 MC88200 CMUU (4P128) 25MHz HYPERmodule 4 MC88100 CPU 8 XC88200 CMUU (4P512) 25MHz HYPERmodule 2 MC88100 CPU 4 MC88200 CMUU (2P256) 25MHz HYPERmodule 2 MC88100 CPU 8 MC88204 CMMU (2P512) Memory: 188 16MB DRAM Memory Board 188 64MB DRAM Memory Board 188A 16MB DRAM Memory Board 188A 64MB DRAM Memory Board 288 32MB ECC Memory Board 288A 128MB ECC Memory Board	1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4 4 4 4 4 4	01-W3546B03E 01-W3546B02D 01-W3731B01A 01-W3731B02A 01-W3547B02G 01-W3730B01C 01-W3576B01C 01-W3576B02B 01-W3545B01C 01-W3545B02B 01-W3554B01C 01-W3554B02C 01-W3556B01C 01-W3556B02C 01-W3557B01C 01-W3557B02C 01-W3557B04B 01-W3545B04C 01-W3556B04C 01-W3646B02C 01-W3646B01C 01-W3729B02B 01-W3646B01B 01-W3727B01B 01-W3782B01A
MVME224-1	4MB or 8MB Parity Memory(MVME181 only)	2	01-W35G0B01E
MVME236-1	4MB or 8 or 16MB Parity Memory(MVME181 only)	4	01-W3561B01A
MVME327A*	SCSI Bus Adapter	2	01-W3550B01G
MVME328-1*	SCSI Host Adapter	6	01-W2625C01A
MVME332XT	8 Serial/1 Parallel Async Comm. Controller	8	01-W3475B02C
MVME335	4 Serial/1 Parallel Port Async Comm. Controller	1	01-W3530B02B
MVME336	DeltaLINK ControUer (SIO)	1	01-W3487B01B
336MUX	MVME336 multiplexer module	16	01-W3491B01C
MVME337-1	32 Serial Port Asynchronous Communications Controller	4	01-W3440B13B
MVSB741	16Channel Asynchronous Extensible VSB (EVSB) Module	4 per MVME337	01-W638BG1A

* The M8120, MVME187, MVME327 and MVME328 only support SCSI logical unit number 0. There is no support for SCSI target mode operation with these boards.
** Off board memory (memory on the VME Bus) is not supported with this board.
*** VMEbus is not supported with this board. There are no modem control signals on the console port of the MVME187 or M8120.

Peripheral Devices

Device	Maximum Number
150MB CDC WREN HI Hard Disk*	4
300MB CDC WREN IV Hard Disk*	4
600MB CDC WREN V Hard Disk*	4
1.2GB CDC WREN VII Hard Disk*	4
135MB Fujitsu 2613 Hard Disk* (3,4)	4
180MB Fujitsu 2614 Hard Disk* (4)	4
330MB Fujitsu 2622 Hard Disk* (4)	4
525MB Fujitsu 2624 Hard Disk* (3,4)	4
1GB Seagate 11200 Hard disk* (3)	4
2GB Seagate 12400 Hard disk* (3)	4
Toshiba XM-3201B CD-ROM Drive* (3)	4
Toshiba XM-3301 CD-ROM Drive* (3)	4
655KB/1.2MB 5.25" Teac PC-AT compatible floppy* (2,3)	1
360KB/2.9MB 3.50" Teac PS/2 compatible floppy* (2,3)	1
150MB Archive 2150S QIC Tape Drive*	2
525MB Archive 2525S QIC Tape Drive*	2
155MB Teac 3.5 inch Cartridge Drive (data cassette)*	1
2GB Exabyte EXB-8200 Tape Drive* (1,4)	2
2.0+GB Archive Digital Audio Tape (DAT) Drive* (3)	2
M4 9905 Tape Drive* (2)	1
M4 9914 Tape Drive* (2)	1
Kennedy 1600/6250 BPI 1/2 inch Tape Drive (Model 9662)* (2)	1

* On MVME327, only supported in fixed size records of 1024 bytes (or higher) multiples.
No boot support for Exabyte Tape drives.
* (2) No boot support for 9-Track Tape Drives or Floppy Drives.
* (3) This drive is not supported on the MVME327 controller.
* (4) Custom firmware is on drive - order from Motorola.
